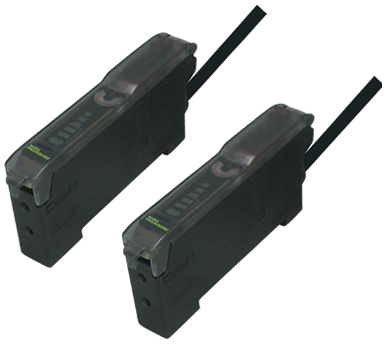

| Product model |
DEA17 |
DEF18 |
| Order number |
RE 109210 |
RE 109220 |
| Control output |
NPN
Load voltage: Max.30VDC
Load current: Max.200mA
Survival voltage: Max.1v |
PNP
Load voltage: Max.30VDC
Load current: Max.200mA |
| Response time |
Max.1ms |
| Working voltage |
12-24VDC |
| Working current |
Max.40mA |
| Light source |
Red LED (modulation) |
| Flexibility regulation |
VR regulation (1: coarse regulation 2: fine regulation) |
| Action mode |
Select Light On/Dark On via control line |
| Protection circuit |
Power source reverse connection protection; output-side overcurrent protection |
| Indicator lamp |
Action indicator lamp: red LED |
| Connection mode |
Wire connection |
| Insulation resistance |
Max>20M (500VDC) |
| Ambient temperature |
-10-60,Storage: -25-70 |
| Anti-interference |
+-240V square wave caused by jamming simulator (pulse width: 1us) |
| Vibration-proof |
Amplitude: 1.5mm; frequency: 10-55Hz 2 hours in X, Y, Z direction separately |
| Shock resistant |
3 times in X, Y, Z direction separately |
| Ambient brightness |
Sunlight: Max.11000Lux Solar light: Max.3000Lux |
| Ambient humidity |
Storage: 35-85%RH |
| Casing material |
ABS casing |
| Accessories |
Adjustor, bracket,snail, nut |
| Wiring and optical fiber ber connector |
Optical fiber: standard 2m; optical fiber connector: 1-6 |
| Optical fiber connector type |
DE-418M DE-460M DE-3140 DE-4180 |
| Detection method |
Diffuse reflection type Diffuse reflectio type Photic type Photic type |
| Appearance & dimension |
4x18mm 4x60mm 3x14mm 4x18mm |
| |
    |
