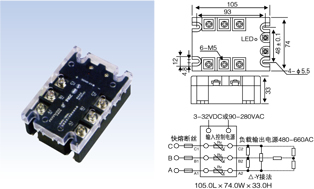

| GJ-GJH3(industrial type,industrial type) |
 |
| Load voltage |
480VAC or 660VAC |
| Load current |
40A, 60A, 80A, 100A, 120A, 150A |
| Control voltage |
3-32VDC or 90-280VAC |
| Control current |
25-100mA |
| On voltage |
<1.8V |
| Off leakage current |
<10mA |
| On-off time |
<10ms |
| Dielectric strength |
2500VAC NO,NC Bring out-radiator panels |
| Insulation resistance |
1000M /500VDC |
| Ambient temperature |
-30~+75 |
| Mounting methods |
bolted fixed |
| The work insturctions |
LED |
| Weight |
415g | |
RE109590 |
