SSR10-80AD
Products: Industrial sensor View: 2544Frequency
|
|
|
|
|
| Code of outline |

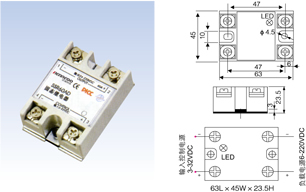

Appearance |
Size |
Technical Characteristics |
Order Parts No. | |
| SSR10-80AD |
 |
| Load voltage |
220VDC |
| Load current |
10A,20A,30A,40A,60A,80A |
| Control voltage |
3-32VDC |
| Control current |
8-40mA |
| On voltage |
<1.5V |
| Off leakage current |
<2mA |
| On-off time |
<10ms |
| Dielectric strength |
2500VAC NO,NC Bring out-radiator panels |
| Insulation resistance |
1000M /500VDC |
| Ambient temperature |
-30~+70 |
| Mounting methods |
bolted fixed |
| ʾ The work insturctions |
LED |
| Weight |
110g | |
RE109730 | |
|
