| Key type and Dimension |
Operating Characteristics |
 |
| Key plug in force |
147.N(1,500gf) |
| key pull out force |
29.42N(3,000gf) |
| Pretravel |
6 +-3mm |
| Total travel |
(28mm) |
| Force required to have positive |
58.84N(6,000gf) |
| Positive opening travel |
10mm | |
| |
|
|
Designation |
Signal |
Description |
| Type |
EC-93 |
Safety switch |
|
Type of contact blocks fitted |
B |
2B(2NC) |
|
C |
1A1B(NO-NC) |
|
Conduit entries
|
PG |
PG 13.5XP1.5 |
|
PT |
PT1/2X14UNC |

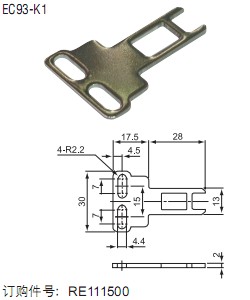

Actuating keys |
None |
None |
|
01 |
Horizontal |
|
02 |
90 Vertical |
|
03 |
Adjustable |
Ratings
|
Rated
voltage
|
Noninductive Load (A)
|
nductive Load (A) |
|
Resistance Load
|
Lamp Load
|
Inductive Load
|
Motor Load
|
|
NC |
NO |
NC |
NO |
NC |
NO |
NC |
NO |
|
125VAC
250VAC
500VAC |
10
10
10 |
3
2
1.5 |
1.5
1
0.8 |
10
10
3 |
5
3
1.5 |
2.5
1.5
0.8 |
8VDC
14VDC
30VDC
125VDC
250VDC
|
10
10
6
0.8
0.4 |
6
6
4
0.2
0.1 |
3
3
3
0.2
0.1 |
10
10
6
0.8
0.4 |
6
6
4
0.2
0.1 |
6
6
4
0.2
0.1 |
Characteristics
| Rating |
3A 240VAC (A300) |
| Operation speed |
0.1m ~0.5m/s |
| Operating frequency |
30 operations/minute |
| Contact resistance |
25m max. (initial). |
IInsulation resistance |
100m min. (at 500VDC) |
| Rated insulation voltage(UI) |
400V |
| Dielectric strength |
AC2500V/Umip 4KV |
| Vibration |
10 to 55Hz, 0.65mm double amplitude |
| Shock |
Mechanical: Approx. 1000m/s2(Approx. 100G'S)
Electrical: Approx. 300m/s2(Approx. 30G'S) |
| Ambient temperature |
-30~+70 |
| Ambient Humidity |
< 95% RH |
| Life |
Mechanical: 10,000,000 operations/min.
Electrical: 150,000 operations/min. |
| Degree of protection |
IP65(EN60947-5-1) |
Short-circuit protective device |
10A fuse |
| Weight |
Approx. 76g |
|
